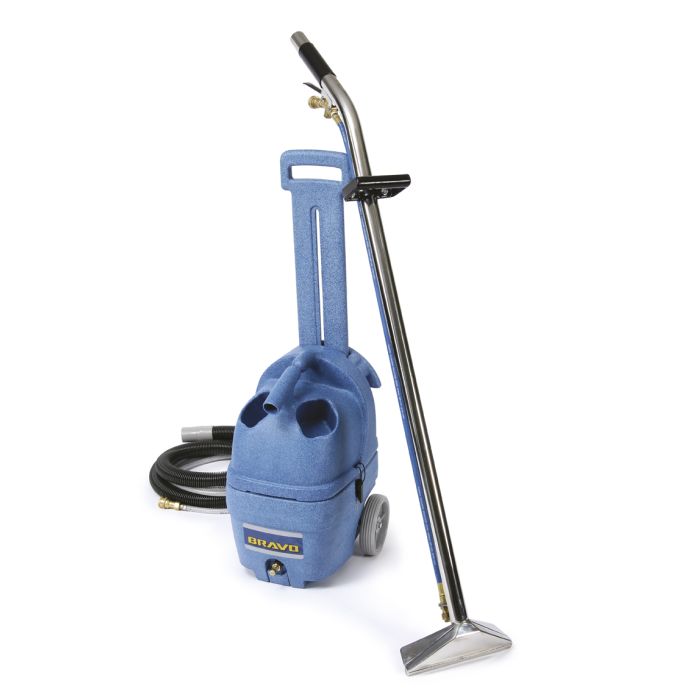

The new Bravo Plus features a larger capacity solution tank for cleaning of small carpeted areas using the lightweight stainless steel carpet wand and hose assembly supplied with the machine. The hand / upholstery tool is an optional extra with the new Bravo Plus.
Although the use of a recognised Defoamer product is mentioned in all the service manuals issued with new machines the End User will hardly ever read this part and therefore will not use the product.
The emphasis placed on a recognised Defoamer product cannot be stressed enough.
Use of Defoamer in the recovery tank of a machine will, in most cases prevent excess water damage to vacuum motors due to dirty water ingestion. This is caused by the fact that foam is lighter than water and will not close the vacuum shut off ball cage assembly. This, in turn will lead to the foam being ingested into the vacuum motors.
In addition to this, it is also important to your keep clean water reservoir separate from waste water and to this end we also recommend the use of different coloured buckets such as the red and white Prochem CN3503 buckets shown at the bottom of the page, the red being used solely for waste water and the white just for clean.
Any vacuum motor returned for repair or warranty claim that shows any sign of dirty water ingestion will not be replaced since the Terms & Conditions of Warranty have not been adhered to.
Directions for use of defoamer.
Add 20ml of Prochem S760 Liquid Defoamer concentrate per 10 litres of recovery tank capacity (1-500).
Dilute the required amount of concentrate in a small amount of water and feed this solution into the vacuum hose, with the machine switched on and add defoamer solution directly to the machine recovery tank.
Do not add Defoamer to the cleaning solution.
For excessive foam, increase the amount of S760 required.
|SOLUTION TANK||10 LITRES|
|RECOVERY TANK||13.2 LITRES|
|SOLUTION PRESSURE||3.7 BAR 55(PSI)|
|VACUUM MOTOR||2 STAGE BY PASS|
|ADJUSTABLE HANDLE||59 TO 99CM|
Q. Is this machine similar to the Prochem Galaxy?
A. Please read the specification on the machine, also a demo is available is you would like to see this machine in action.
|Bravo Info (350.58 KB)|
