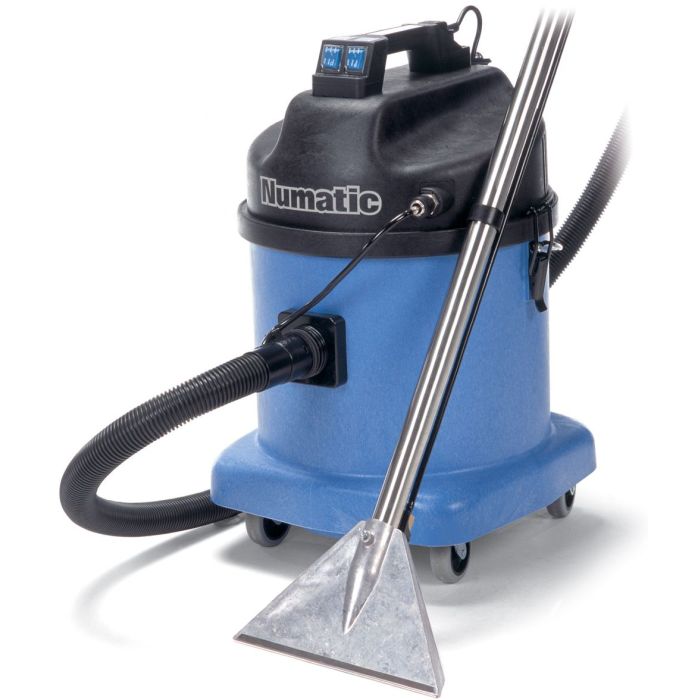

Numatic CT570/CTD570 Carpet Cleaner
The Numatic CT570/CTD570 Carpet and Upholstery Cleaner has become a popular contractor's machine, providing not only exceptional power and performance but also the ability to take the knocks and bangs of commercial life.
Numatic CT570/CTD570 Carpet Cleaner
The Numatic CT570/CTD570 Carpet Cleaner has become popular as a contractor's machine, providing not only exceptional power and performance required for this kind of application but also the ruggedness needed for commercial life.
The Structofoam construction duplex motors and integral solution tank all add up to make a machine that is designed to work all day, every day.
Features:
- Structofoam construction
- Available as single or dual motor
- Tough and rugged
- Four-wheel mobility
- Comprehensive toolkit
Kit A41A Commercial extraction kit is included which comprises of;
- 4.0 CleanTec extraction hose
- Stainless steel extraction trigger bend tube
- Stainless steel extension tube
- 275mm Aluminium extraction tool
- 100mm Upholstery extraction tool
- CleanTec trigger valve and spray tube
- **3 years warranty - Excludes consumable parts ie carbon brushes, floor brushes etc that are considered replaceable from time to time during the normal working life of the machine, the warranty period commences from the date the machine is purchased. Any warranty claim can only relate to the specific part that is proven to be at fault and for which a replacement will be supplied but cannot be extended to constitute a claim against the complete machine. Claims will not be accepted if they are the result of fair wear and tear, misuse or abuse of any kind.**
_____________________________________
Defoamer
Although the use of a recognised Defoamer product is mentioned in all the service manuals issued with new machines the End User will hardly ever read this part and therefore will not use the product.
The emphasis placed on a recognised Defoamer product cannot be stressed enough.
Use of Defoamer in the recovery tank of a machine will, in most cases prevent excess water damage to vacuum motors due to dirty water ingestion. This is caused by the fact that foam is lighter than water and will not close the vacuum shut off ball cage assembly. This, in turn will lead to the foam being ingested into the vacuum motors.
In addition to this, it is also important to your keep clean water reservoir separate from waste water and to this end we also recommend the use of different coloured buckets such as the red and white Prochem CN3503 buckets shown at the bottom of the page, the red being used solely for waste water and the white just for clean.
Any vacuum motor returned for repair or warranty claim that shows any sign of dirty water ingestion will not be replaced since the Terms & Conditions of Warranty have not been adhered to.
_____________________________________
| Capacity |
Dry 23L, Extraction 10L, Wet 15L |
|---|---|
| Power Cord |
10m |
| Motor |
CT570 – 1000W, CTD570 – 2 x 1000W |
| Power |
230V AC 50/60Hz |
| Weight |
(Machine + Kit) CT570 – 18.98kg, (Machine + Kit) CTD570 – 20kg |
| Cleaning Range |
26.8m |
| Suction |
2400mm H2O |
| Airflow |
CT570 – 49L/sec, CTD570 – 96L/sec |
| Dimensions |
415 x 415 x 645mm |
