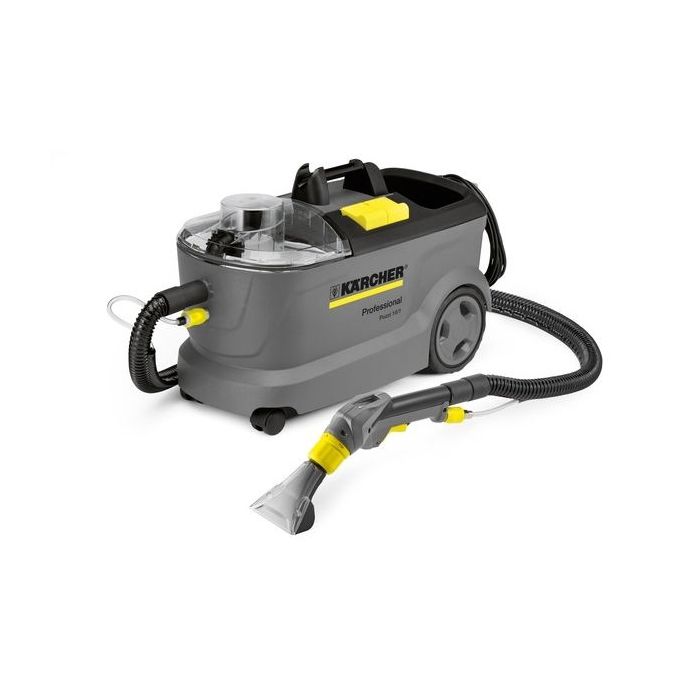

Karcher Puzzi 10/1 Carpet Cleaner

Ref: 1100104
ex VAT £699.00 inc VAT £838.80

The Karcher Puzzi 10 Carpet Cleaner ideal for medium-sized areas in commercial and private applications.

The fresh water tank in the Karcher (Puzzi 10) Carpet Cleaner is fitted with a filter element, which allows long periods of operation and protects the pump from contamination. Robust, compact housing made of durable plastics makes the unit lightweight and easy to carry.

The Karcher (Puzzi 10) Carpet Cleaner's two large wheels and two castors allow for excellent manoeuvrability. Pushbuttons for spraying and vacuuming modes conveniently positioned on top of the unit.

The Karcher (Puzzi 10) Carpet Cleaners easily removed transparent suction dome enables recovery performance to be checked at a glance. Service-friendly, rubber-mounted pump and fan module. 9-litre dirty water tank simply lifts out.




Although the use of a recognised Defoamer product is mentioned in all the service manuals issued with new machines the End User will hardly ever read this part and therefore will not use the product.

The emphasis placed on a recognised Defoamer product cannot be stressed enough.

Use of Defoamer in the recovery tank of a machine will, in most cases prevent excess water damage to vacuum motors due to dirty water ingestion. This is caused by the fact that foam is lighter than water and will not close the vacuum shut off ball cage assembly. This, in turn will lead to the foam being ingested into the vacuum motors.

In addition to this, it is also important to your keep clean water reservoir separate from waste water and to this end we also recommend the use of different coloured buckets such as the red and white Prochem CN3503 buckets shown at the bottom of the page, the red being used solely for waste water and the white just for clean.

Any vacuum motor returned for repair or warranty claim that shows any sign of dirty water ingestion will not be replaced since the Terms & Conditions of Warranty have not been adhered to.



Max. area performance (m²/h)
Air flow rate (l/s)
Vacuum (mbar/kPa)
220 / 22
Spray rate l/min
Spray pressure/back pressure bar
Fresh / waste water tank (l)
10 / 9
Turbine power rating (W)
Power rating pump (W)
Brush motor power rating (W)
Weight (kg)
Dimensions (L x W x H) (mm)
705 x 320 x 435
Voltage (V)
220 - 240
Frequency (Hz)
50 - 60

Standard accessories:

  • 2.5 m flexible spray-extraction hose with integrated water supply,
  • Hand tool
  • RM tablets
  • Floor tool with bend and suction tube.
